Product Details
- Place of Origin: China
- Brand Name: YONG DA

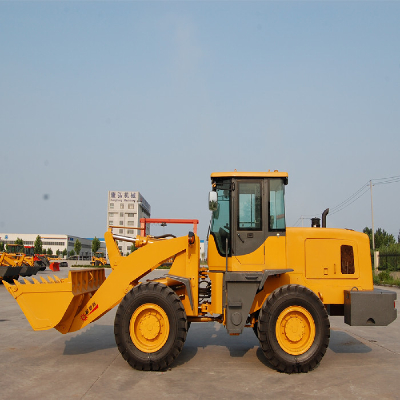

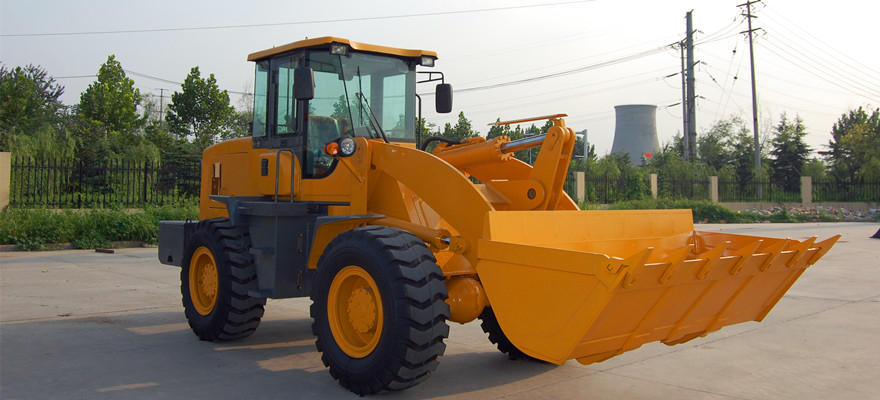

- Model Number: ZL36F
- Weight: 9500.000 kg
| ZL36F | |
| Rated Load（ kg） | 3000 |
| Total weight（ kg） | 9500 |
| Rated Bucket Capacity（ m3） | 1.7 |
| Dumping Height（mm） | 3200 |
| Dumping Reach（mm） | 1360 |
| Overall Dimemsions(mm) | 7300x2440x3070 |
| Engine Model | Weichai Deutz WP6G125E22 |
| Rated Power（kw） | 92 |
| Rated Speed（rpm） | 2200 |
| Gear box | countershaft powershift |
| Torque converter | YJ315 |
| Gear Shift | 4F2R |
| Max.Speed（km/h） | 36 |
| Model of Axle | Hub Reduction Axle |
| System Working Pressure（Mpa） | 16 |
| Type Specification | 17.5-25 |
| Service Brake | Air assisted oil disk on 4 wheels |
The leading products are ZL series wheel loaders, including 11 series and 40 different types: 0.8T to 5T loaders.
We invested 400 million RMB to establish our new production base in the year of 2011. The annual production capacity can reach 1,000 units. The advanced electrophoresis and electrostatic powder spraying line was introduced into Yongda, which is the first engineering machinery manufacturer applying this process in China.
Our mainly products: 0.8T to 5T loaders, hydraulic pumps and control valves.
- Place of Origin: China
- Brand Name: YONG DA
- Model Number: ZL36F
- Weight: 9500.000 kg
| ZL36F | |
| Rated Load（ kg） | 3000 |
| Total weight（ kg） | 9500 |
| Rated Bucket Capacity（ m3） | 1.7 |
| Dumping Height（mm） | 3200 |
| Dumping Reach（mm） | 1360 |
| Overall Dimemsions(mm) | 7300x2440x3070 |
| Engine Model | Weichai Deutz WP6G125E22 |
| Rated Power（kw） | 92 |
| Rated Speed（rpm） | 2200 |
| Gear box | countershaft powershift |
| Torque converter | YJ315 |
| Gear Shift | 4F2R |
| Max.Speed（km/h） | 36 |
| Model of Axle | Hub Reduction Axle |
| System Working Pressure（Mpa） | 16 |
| Type Specification | 17.5-25 |
| Service Brake | Air assisted oil disk on 4 wheels |
