- Size: 9593*2990*3650
- Place of Origin: Qinghzou
- Brand Name: YONG DA
- Model Number: 968-28
- Weight: 31000.000 kg
1. Contact us
Email: yongdamandy@gmail.com Whatsapp: 86 13583660357
including: two forks, air-conditioner, two front tire chains; one new-updated perforated bucket)

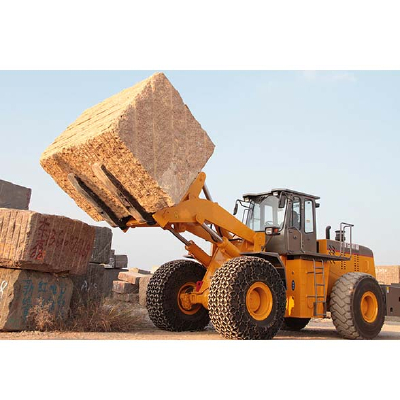

Specifications of 968-28
Description | Specifications | Unit | ||
Rated power | 240 | hp/h | ||
Overall dimension （ L×W×H ） | 9593×2990×3650 | Mm | ||
Max. lifting height | Forks at level | 3450 | Mm | |
Take back forks | 3750 | |||
Operating weight | 31000 | Kg | ||
Max. Limited Load | 28000 | Kg | ||
Bucket capacity | 2.7 | m3 | ||
Dimensions of fork | L×W×T | 1400 × 280 × 110 | Mm | |
Distance of fork | ≤ 1350 | Mm | ||
Rated loading capacity | 28000 | Kg | ||
Turning angle | ± 3 5 ° |
| ||
Turning radius | 8195 | Mm | ||
Wheel base | 4125 | Mm | ||
Tread | 2300 | Mm | ||
Min. Ground clearance | 430 | Mm | ||
Unloading angle | 18 ° |
| ||
Haul location height （ Ground clearance of material ） | 300 | Mm | ||
Fuel tank capacity | 380 | L | ||
Hydraulic fuel tank capacity | 380 | L | ||
Specification of tire | Front wheel | “ Advanced ” 3-stars high-load 26.5 steel wire radial tire | ||
Rear wheel | “ Advanced ” 26.5 strength-enhanced tires | |||
