- Size: 7550*3030*3330
- Place of Origin: Qinghzou

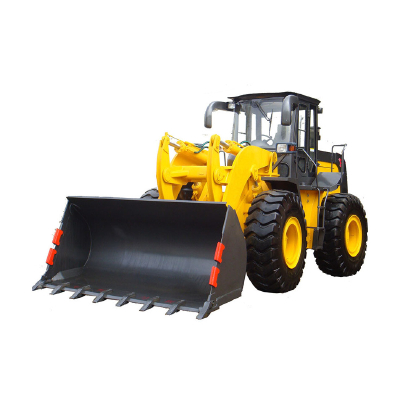

- Brand Name: YONG DA
- Model Number: 953
- Weight: 9600.000 kg
1. Low fuel-consuming, high-quality Turbo Charge Engine has good power performance and big torque reserve;
2. Small turning radius makes the machine flexible for operation in small working sites
Rated power | 162kw |
Overall dimensions | |
Overall length | 7550mm |
Overall width | 3030mm |
Overall height | 3330mm |
Dumping height | 3030mm |
Dumping reach | 1300mm |
Specification of tyre | 23.5-25 |
Performance parameters of entire machine | |
Operating weight | ≤16800kg |
Bucket capacity | 3 m3 |
Rated loading capacity | 5000kg |
Break out force | ≥ 150KN |
Max. traction force | ≥ 150KN |
Max. climbing gradient | ≥ 2 8 ° |
Turning angle | ±35° |
Turning radius | 6450mm |
Gear box | YT or SC |
Number of shifts ( forward / reverse ) | 2/1 |
Fuel tank capacity | 240L |
Hydraulic fuel tank capacity | 220L |
Lifting time | ≤6.8s |
Total cycling time | ≤12.3s |
Travel speed | |
Forward gear Ⅰ | 11.5km/h |
Forward gear Ⅱ | 38km/h |
Reverse gear Ⅰ | 16km/h |
