- Size: 8020*2990*3300
- Place of Origin: Qinghzou
- Brand Name: YONG DA
- Model Number: 953-16
- Weight: 21000.000 kg
Contact us
Email: yongdamandy@gmail.com Whatsapp: 86 13583660357

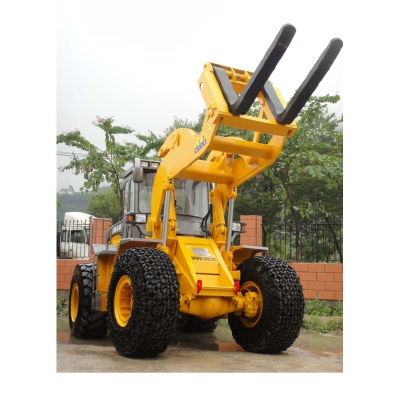

953-16 (including: two forks, air-conditioner, two front tire chains; one new-updated perforated bucket)
Specifications of 953-16
Description | Specification | Unit | |
Rated Power | 162 | kw/h | |
220 | hp/h | ||
Overall Dimension (L*W*H) | with forks | 8020 × 2990 × 3300 | mm |
Max. Lifting Height | 3480 | mm | |
Operating Weight | 21000 | kg | |
Max. Limited Load | 16000 | kg | |
Bucket Capacity | 2.7 | m3 | |
Dimensions of fork | (L*W*H) | 1500 × 200 × 100 | mm |
Distance of fork | ≤ 1220 | mm | |
Safety Guard | Height | 1770 | mm |
Driver ’ s Cab | Height | 1680 | mm |
Turning Angle | ± 3 5 | ° | |
Max. Climbing Gradient | 30 | ° | |
Turning Radius | 7250 | mm | |
Wheel Base | 3250 | mm | |
Tread | 2300 | mm | |
Min. Ground Clearance | 530 | mm | |
Unloading Angle | 16 | ° | |
(with fork)Haul Location Height (Ground Clearance of Material) | 300 | mm | |
Turning Radius When Fork at Haul Location | 6470 | mm | |
Fuel Tank Capacity | 280 | L | |
Hydraulic Fuel Tank Capacity | 280 | L | |
Specification of Tires | 23.5-25/24PR |
| |
- Size: 8020*2990*3300
- Place of Origin: Qinghzou
- Brand Name: YONG DA
- Model Number: 953-16
- Weight: 21000.000 kg
