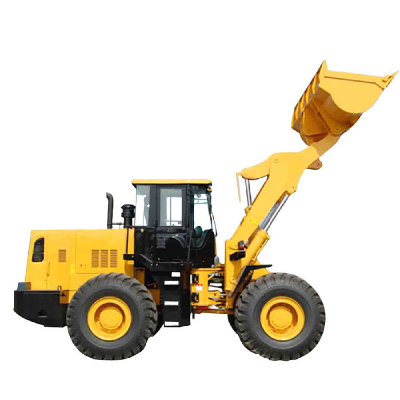

Product Details
- Size: 7920*3060*3400
- Place of Origin: Qinghzou
- Brand Name: YONG DA
- Model Number: 855
- Weight: 16700.000 kg
Items | 830 | 833E1 | 835E1 | 836 | 855 |
Rated Load( kg) | 1500 | 2000 | 2500 | 3000 | 5000 |
Total Weight (kg) | 5800 | 6300 | 6930 | 9700 | 16700 |
Rated Bucket Capacity(m3) | 1 | 1.1 | 1.2 | 1.7 | 3 |
Max.Gradeability | 30° | 30° | 30° | 30° | |
Dumping Height (mm) | 3500 | 3500 | 3500 | 3200 | 3100 |
Dumping Reach (mm) | 1200 | 1200 | 1200 | 1360 | 1200 |
Overall Dimemsions (mm) | 6270x2130x2950 | 6400x2250x2900 | 6800x2250x3000 | 7300x2440x3070 | 7920x3060x3400 |
Engine Model | Yunnei4102 Turbo | Yuchai 4105 Turbo | Weichai Deutz WP6G125E22 | Weichai DeutzWP6G125E22 | Weichai Steyr WD10G220E22 |
Rated Power(KW) | 60 | 85 | 92 | 92 | 162 |
Rated Speed(rpm) | 2400 | 2400 | 2200 | 2200 | 2200 |
Torque converter | YJ265 | YJ280 | YJ280 | YJ315 | YJ375X |
Gear Shift | 4F4R | 4F4R | 4F4R | 4F2R | 2F1R |
Max.Speed(km/h) | 30 | 30 | 30 | 36 | 30 |
Model of Axle | Hub Reduction Axle | Hub Reduction Axle | Hub Reduction Axle | Hub Reduction Axle | Hub Reduction Axle |
System Working Pressure(Mpa) | 16 | 16 | 16 | 16 | 18 |
Type Specification | 16/70-20 | 16/70-24 | 16/70-24 | 17.5-25 | 23.5/25 |
Service Brake | Air assisted oil disk on 4 wheels | Air assisted oil disk on 4 wheels | Air assisted oil disk on 4 wheels | Air assisted oil disk on 4 wheels | Air assisted oil disk on 4 wheels |
Optional equipment: | Joystick;Quick coupler;longer lift arm with dumping height 4.5M;pallet fork;log grapple;hay fork;snow plow;pipe grapple;AC;Cummins engine;digger,sweeper | Joystick;Quick coupler;pallet fork;log grapple;hay fork;snow plow;pipe grapple;AC;Cummins engine | Cummins engine | Shanghai diesel,ZF WG200 transmission |
- Size: 7920*3060*3400
- Place of Origin: Qinghzou
- Brand Name: YONG DA
- Model Number: 855
- Weight: 16700.000 kg
