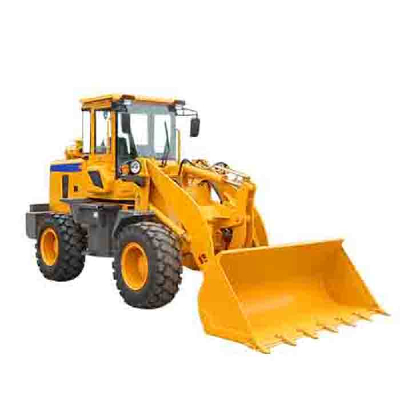

Product Details
- Size: 5900*2200*2800
- Place of Origin: Qinghzou
- Brand Name: YONG DA
- Model Number: 826D3
- Weight: 5200.000 kg
| Items | 818D3 | 820D2 | 826D3 | 830 | 833E1 |
| Rated Load（ kg） | 500 | 800 | 1000 | 1500 | 2000 |
| Total Weight (kg) | 3450 | 5200 | 5200 | 5800 | 6300 |
| Rated Bucket Capacity(m3) | 0.6 | 0.7 | 0.9 | 1 | 1.1 |
| Max.Gradeability | 30° | 30° | 30° | 30° | 30° |
| Dumping Height (mm) | 3200 | 3200 | 3200 | 3500 | 3500 |
| Dumping Reach (mm) | 1200 | 1070 | 1200 | 1200 | 1200 |
| Overall Dimemsions (mm) | 5600x1900x2650 | 5750x2020x2700 | 5900x2200x2800 | 6270x2130x2950 | 6400x2250x2900 |
| Engine Model | Yunnei 490 | Yunnei 4100 | Yunnei 4100 Turbo | Yunnei4102 Turbo | Yuchai 4105 Turbo |
| Rated Power(KW) | 37 | 47 | 55 | 60 | 85 |
| Rated Speed(rpm) | 2400 | 2400 | 2400 | 2400 | 2400 |
| Torque converter | YJ240 | YJ265 | YJ265 | YJ265 | YJ280 |
| Gear Shift | 2F2R | 4F4R | 4F4R | 4F4R | 4F4R |
| Max.Speed(km/h) | 25 | 30 | 30 | 30 | 30 |
| Model of Axle | Isuzu Axle | Hub Reduction Axle | Hub Reduction Axle | Hub Reduction Axle | Hub Reduction Axle |
| System Working Pressure(Mpa) | 16 | 16 | 16 | 16 | 16 |
| Type Specification | 20.5-16 | 20.5-16 | 16/70-20 | 16/70-20 | 16/70-24 |
| Service Brake | Expansion-shoe Brake on 4 wheels | Air assisted oil disk on 4 wheels | Air assisted oil disk on 4 wheels | Air assisted oil disk on 4 wheels | Air assisted oil disk on 4 wheels |
| Optional equipment: | Joystick;Quick coupler;longer lift arm with dumping height 4.3M;pallet fork;log grapple;hay fork;snow plow;pipe grapple;AC;digger,sweeper | Joystick;Quick coupler;longer lift arm with dumping height 4.5M;pallet fork;log grapple;hay fork;snow plow;pipe grapple;AC;Cummins engine;digger,sweeper | |||
